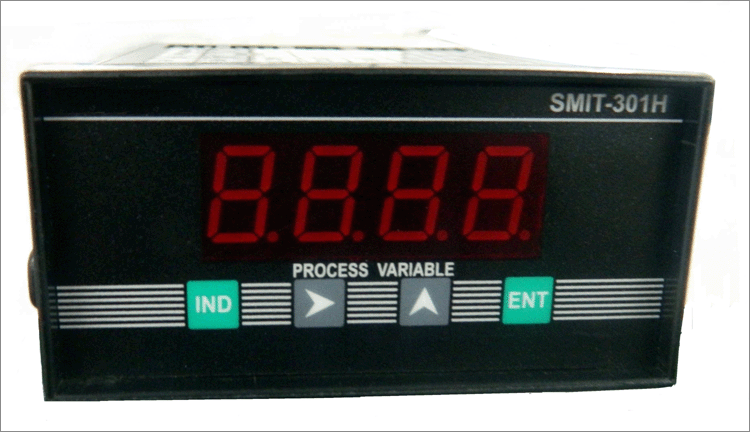

SMIT 301H - Single Channel Data Acquisition System |
|
|
|
|
It is a microcontroller based universal Process Indicator controller unit.
It is highly versatile, accurate and different from the conventional
indicators. The set Parameters and integrated total are stored in serial
NVRAM; no battery back up is required.
The unit converts analog input like 4 - 20 mA DC and outputs to RS 232 or
RS 485 Serial Port (user to specify option) and also displays Process
Parameter Value as per Zero, Span etc setting which are editable using
Front Panel Key Board.
|
|
|
|
|

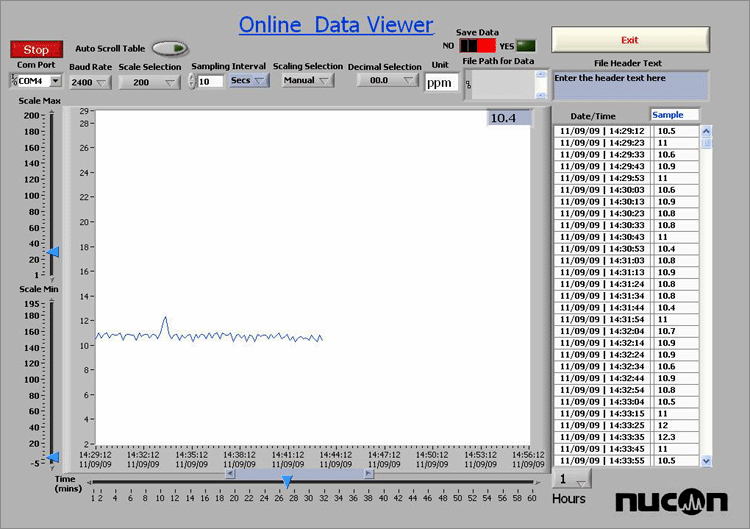

It is a Labview program that can acquire data and display data in Tabular or Graphical format / screens.
The data is stored in text format and is available for opening in Labview, MS Word, MS Excel, Notepad etc programs. The Software SMITSoft itself opens
in Labview for the User.
|
|
|
|
|
|

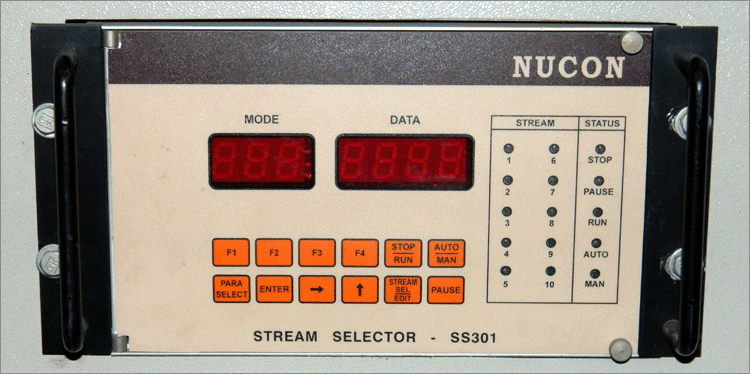

The STREAM SELECTOR UNIT is based on popular 8-bit Microcontroller. The system is designed to control the timing of stream selection of a eight-stream system using
its timer and relay outputs. The system consists of 8 analog inputs (range 0-2V).
|
|
|
|
|

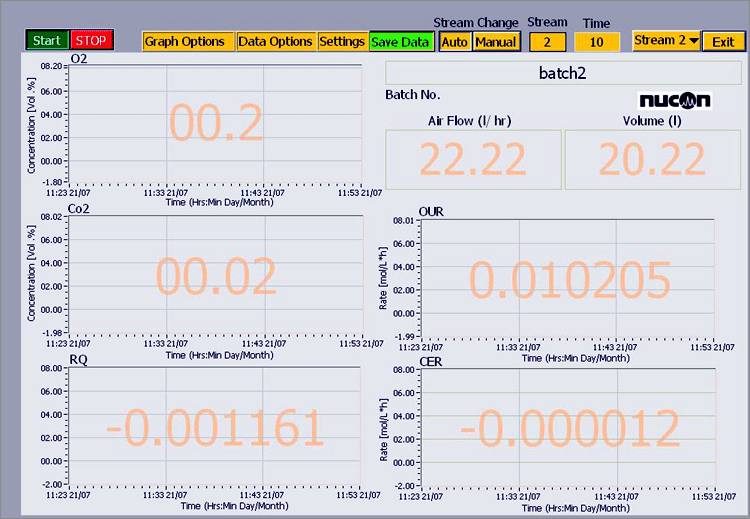

Stream Selector is Software used to fetch Data from the Stream Selector (Data logger) connected on a Serial Port. It displays the fetched data on a screen in various formats,
i.e. Periodic Data Display, Data Display, and Trend Chart Display, Save the Data in a defined File.
The Software is totally user configurable; user can define the Port on which the hardware is connected, Measurement Unit of the data, maximum & minimum value of the scales in
the Trend Chart and the names of each individual Channels.
|
| Also user can store the data on a Hard Disk in a specified file and retrieve the stored data at a later time
to either view or Print it as Trend Chart or Periodic Table.
|
|
NESCAN - Multichannel Data Acquisition System |
Multi Channel Data Module (Hardware) |
|
|

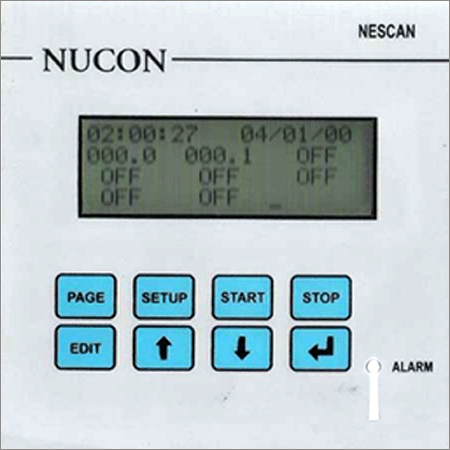

Model: 8901 is a Eight Channel Microprocessor based Analyser for Data Processing with LCD Screen and serial output for connecting computer. It has Real Time Clock and
non volatile memory for selection parameters.
|
|
|
|
|

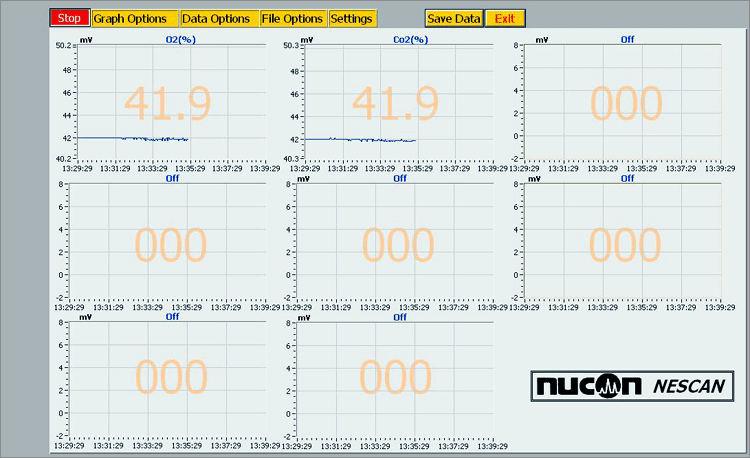

NESCAN is a Software required for 8-Channel Data Acquisition System used to
fetch Data from the Data Module connected on a Serial Port, Display the fetched data on
a screen in various formats, i.e. Periodic Data Display, Data Display, and Trend Chart Display, Save the Data in a defined File.
|
| The Software is totally user configurable as a
user can define the Port on which the Scanner is connected, Measurement Unit of the data, expected maximum value of the data used to scale the data in the Trend Chart and the names of each individual Channels.
Also user can store the data on a Hard Disk in a specified file and retrieve the stored data at a later time to either view it on a screen in the form of Trend Chart or Print
the stored data on a Printer. |
|
NUCON Series 5000 RMS Remote Monitoring System for tank Level , Pressure, Gas Concentration
|
|
Industrial Tank level, Pressure, Temperature, Relative Humidity, Oxygen,
Carbon Dioxide, Nitrogen, Argon and Other Gas Concentration or
impurity can now be remotely monitored and optionally logged on
NUCON Remote Monitoring System. Model 5001 is a single Channel / Parameter
System while Model 5002 is a Dual or Two Channel / Parameter System.
|
For more details...  |
