Gas Analysers |
Trace Oxygen Analyser |
|

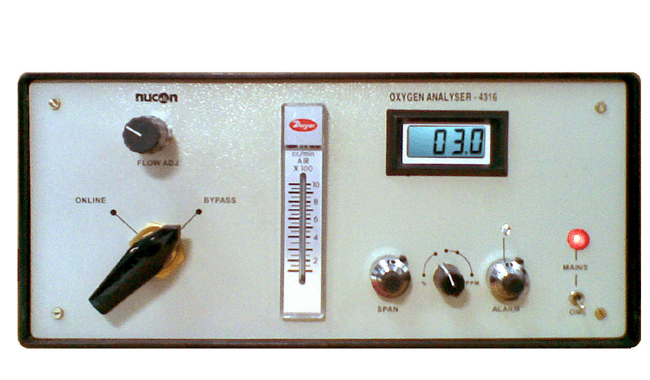

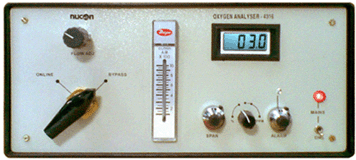

Model:4316H-0.1 |
|

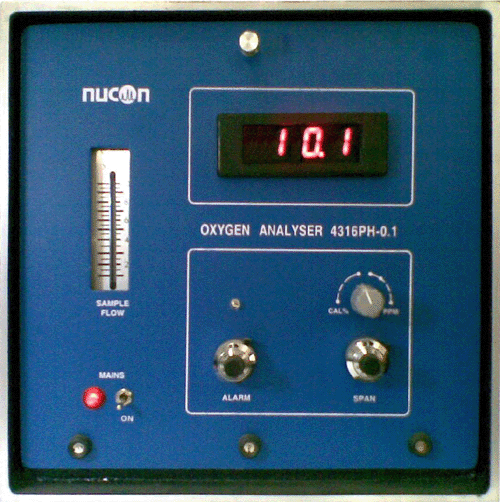

Model:4316PH-0.1 |
|
|
|
|
|
|
|
NUCON DIGITAL TRACE OXYGEN ANALYSERS are designed for accurate and reliable
measurement of Trace Oxygen concentration. Bench Top Model 4316 or
Panel Mounting Model 4316P versions are available. These are complete
instruments and no additional Flow Regulating, Flow Monitoring and
Oxygen Cell Isolation Valves are required to be connected externally.
Direct use on pressurized source like gas cylinder or pipeline is
possible. The instrument will measure oxygen at PPM levels in presence
of most industrial and laboratory gases and atmospheres. It requires no
periodic maintenance like replacing electrodes or electrolyte and can
be calibrated using ambient air or standard calibration samples. The
transducer is a sealed electrochemical fuel cell. Alarm set facility is
available on a ten turn direct indicating dial. Ranges from 0.1 PPM to
30.0% are available. These instruments incorporate a high life and
rugged sensor. Models 4316H-0.1-SPL and 4316PH-0.1-SPL are special
application versions. Eg - Resolution 0.01 PPM or Range 0-10,000 PPM
|
|
Applications: |
- Lamp And Bulb
Manufacturing
- Electronics
- Gas Purity Checks
- Metallurgy
|
- Controlled Gas Environment
- Biotechnology
- Plastics Manufacturing
- Glove Boxes
|
- Inert Atmosphere Gas Blanketing Monitoring
- Chemical Engineering
- Food & Beverage Packaging
- Cryogenics
|
|
For more details... |
|
