Gas Analysers

Toxic Gas Analysers

Series 500

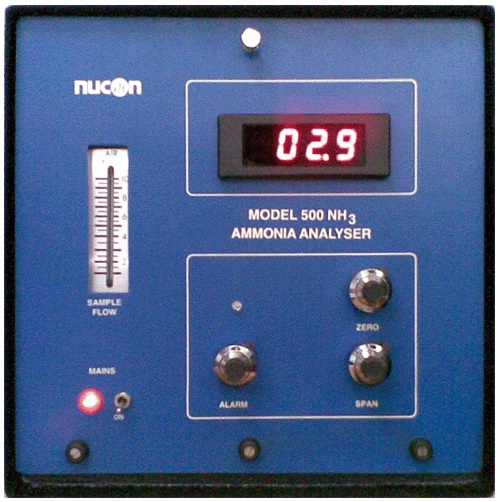

NUCON SERIES 500 TOXIC GAS ANALYSER provides continuous analysis of any one of the gases listed below :
  • Carbon Monoxide (CO)
    •
  • Nitrogen Dioxide (NO2)
    •
  • Nitric Oxide (NO)
    •
  • Hydrogen Sulphide (H2S)
    •
  • Hydrogen Chloride (HCI)
    •
  • Ammonia (NH3)
    •
  • Phosphine (PF3)
    •
  • Ozone (O3)
    •
  • Ethylene Oxide (C2H4O)
    •
  • Chlorine (CI2)
    •
  • Sulphur Dioxide (SO2)
    •
  • Hydrogen (H2)
    •
  • Hydrogen Cyanide (HCN)
    •
  • Chlorine Dioxide
    •
Models are specified as 500 followed by name of gas Eg. Model 500-CO. These are Panel Mounted instruments; with optional back stand can also be used for Bench Top applications. Models for Monitoring two or more gases simultaneously in one gas stream are available Eg. Model-CO+H2S. These have individual Digital Displays, Span and Alarm setting for each gas.

SERIES 500 Gas Analysers are also available for continuous Atmospheric Monitoring (or Remote Process Monitoring) in Remote Sensor cum Transmitter Module cable connected to Control Module (220 V Mains operated) designated as Model 500T. It operates in 4-20 mA Transmitter configuration. While the Control Module is in Safe Area, the Sensor Module can be located in Hazardous Area in which case safety options like Flameproof Enclosure are provided.
For more details...

Series 400

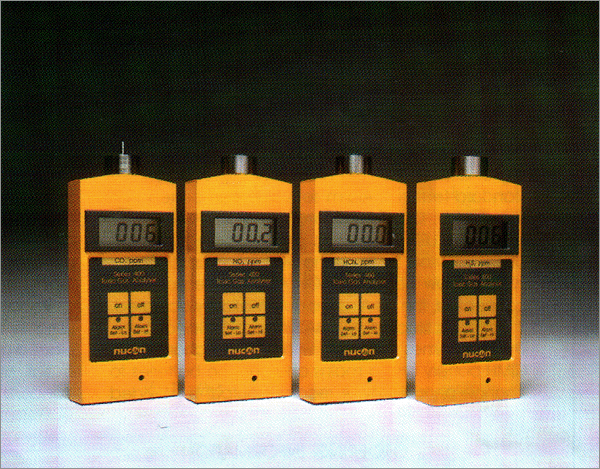

NUCON SERIES 400 TOXIC GAS ANALYSER are Portable TLV Monitors for any of below gases
  • Carbon Monoxide (CO)
    •
  • Nitrogen Dioxide (NO2)
    •
  • Nitric Oxide (NO)
    •
  • Hydrogen Sulphide (H2S)
    •
  • Hydrogen Chloride (HCI)
    •
  • Ammonia (NH2)
    •
  • Phosphine (PF3)
    •
  • Ozone (O3)
  • Chlorine (CI2)
    •
  • Hydrogen (H2)
    •
  • Hydrogen Cyanide (HCN)
    •
  • ETO
    •
  • Doborane
    •
  • Diborane
    •
  • Silane
    •
  • Methyl Bromide
    •
  • Germane
    •
  • Arsine
    •
  • Sulphur Dioxide (SO2)
    •
These are compact and with appropriate optional back clamp can also be fixture-installed, wall-mounted or can be worn on a belt. The sensor is located on the instrument top and is protected by a Stainless Steel cap. It is easy to operate, reliable and in-expensive. To operate simply push ON/OFF button. It calibrates at the turn of a preset and has an easy to read LCD display. LO and HIGH user preset Alarm are standard features. The unit comes complete with built-in rechargeable NiMH battery and a mains charger. A recorder output is provided should there be a requirement to log or to transport data, or connect to other systems. The instrument is housed in a rugged cast metal case that is strong, safe and cuts out electromagnetic radiation.
For more details...

Atmopheric Monitor
  NUCON has developed a range of Atmospheric Monitors that continuously monitor the following gases :
  • CO
    •
  • NH3
  • CL2
  • Other Toxic gases available on request.
    •
The output is available on a Digital Display as well as a 4-20 mA retransmission signal (standard) or 0-1 V DC signal (on request). User can also set an Alarm HI or LO over the entire range of monitoring. A high intensity buzzer is installed for Audio Alarm.

The instrument requires 220 V AC power (optional 100 V AC on request). It has an acrylic cover for safety and dust protection. It can be Wall Mounted or can be used as Table Top System.
For more details...
